AD2&AD3 high-performance servo drives and ASK series
servo motors are perfectly combined for a variety of
driving applications, and can realize the switching of bit
control, speed control and torque control at will. Through the optimized design,AD2&AD3 servo system can have excellent performance, rich functions, stable andreliable, convenient and flexible user experience.
ASK three-phase AC permanent magnet
synchronous servo motors are 4/5 poles,low cogging
torque design, with AD2 & AD3 servo drives to form a
powerful, high-performance servo system.The motor
supports 3 times overload, and different types of
encoders can be selected according to the actual site
requirements, which can fully meet your high level
requirements for dynamic response performance,
speed range, position feedback accuracy, and output
torque accuracy.
1. EtherCAT high speed bus
Minimum communication period 125μs
Jitter less than 1μs
2. Flexible IO function
High-speed DI General DI, DO, AI, AO
3. Multiple input voltage specifications
1/3 phase AC220V
3-phase AC380V
DC power supply
4. Compact volume design
20 percent smaller than the previous generation
Reliable EMC design
5. Quick and easy terminal wiring
Easy connection, saving time for on-site installation and maintenance
6. High level of safety protection design
STO
SS
7. Quick and easy panel operation
Rigid table integration, debugging is more simple and convenient
Integrated point-and-click, self-learning, etc.
Information Diagnostics
8. Wide range of encoder types
Tamagawa Encoder. EnDot, Panasonic. Rotation, ABZ
9. High-performance servo motors
Large torque range Permanent
Magnet synchronous servo motor with high dynamic response
10. Excellent control effect
Position loop period 125μs
Velocity loop frequency response ≥ 2.5kHz
| AC220V AD2 Servo Drive Specification | ||||||||||
| model | 1R8SA | 2R8SA | 4R2SA | 060PA | 100SA | 120SA | 120PA | 140SA | ||
| main power | | AC200V-AC240V; 50/60Hz | |||||||||
| Control power | | AC200V-AC240V ; 50/60Hz ; 30W | |||||||||
| power (output) | | 200W | 400W | 750W | 1.0kW | 1.5kW | 1.5kW | 2.0kW | 3.0kW | ||
| Single-phase input current | 2.5 Arms | 4.1 Arms | 6.1 Arms | 8.2 Arms | 10.5 Arms | 11.8 Arms | 14.0 Arms | 20.0 Arms | ||
| Three-phase input current | 1.2 Arms | 1.9 Arms | 2.8 Arms | 4.0 Arms | 6.7 Arms | 7.0 Arms | 8.2 Arms | 9.3 Arms | ||
| Rated output current | | 1.8 Arms | 2.8 Arms | 4.2 Arms | 6.0 Arms | 10.0 Arms | 12.0 Arms | 12.0 Arms | 14.0 Arms | ||
| Maximum output current | 5.4 Arms | 8.4 Arms | 12.6 Arms | 18.0 Arms | 30.0 Arms | 35.0 Arms | 35.0 Arms | 35.0 Arms | ||
| Overload factor | | 300% | 300% | 300% | 300% | 300% | 280% | 280% | 250% | ||
| Built-in braking resistor | | x | x | 40W , 80Q | 60W , 40。 | 60W , 400 | 60W , 40Q | 100W , 20。 | 100W , 200 | ||
| Minimum resistance of external braking resistor | 40Q | 40Q | 40Q | 25Q | 25Q | 25Q | 20Q | 20Q | ||

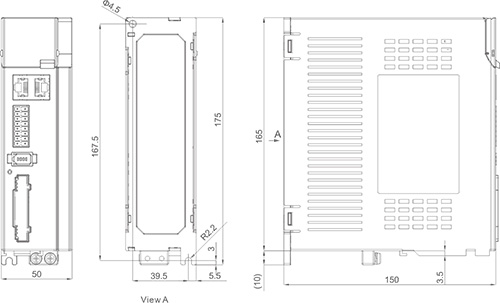

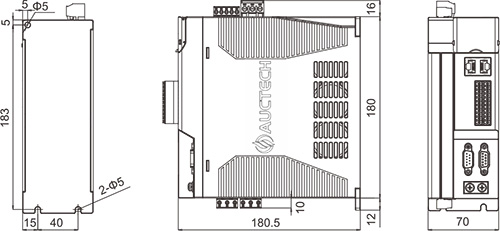

| Dimensional information | 45*180*165 | 45*180*165 | 45*180*165 | 60*180*165 | 60*180*165 | 60*180*165 | 70*192*181 | 70*192*181 | ||
| W*H*D (mm) | ||||||||||
| Size specification | A1 | A1 | A1 | A2 | A2 | A2 | A3 | A3 | ||
| AC380V AD2 Servo Drive Specification | ||||||||||
| model | 5R4SC | 6R8SC | 8R3SC | 100SC | 120SC | 140SC | 210SC | 250SC | 340SC | |
| main power | | Three-phase AC345V~AC440V;50/60HZ | |||||||||
| Control power | | DC 24V,-10%~+10% | ;36W | ||||||||
| Minimum drive current consumption | lArms | I | 1.3Arms | |||||||
| power (output) | | 2kW | 3kW | 4kW | 5kW | 6kW | 7kW | 9kW | 10kW | 15kW | |
| Three-phase input current* | 7.3 Arms | 9.2 Arms | 10.7 Arms | 11.7 Arms | 14 Arms | 17 Arms | 24 Arms | 28 Arms | 38 Arms | |
| Rated output current | | 5.4 Arms | 6.8 Arms | 8.3 Arms | 10 Arms | 12 Arms | 14 Arms | 21 Arms | 25 Arms | 34 Arms | |
| Maximum output current | | 16.2 Arms | 20.4 Arms | 24 Arms | 30 Arms | 35 Arms | 35 Arms | 62.5 Arms | 62.5 Arms | 66 Arms | |
| Overload factor | | 300% | 300% | 290% | 300% | 290% | 250% | 290% | 250% | 194% | |
| Built-in braking resistor | | X | I x | I * | I x | I x | I x | I x | I x | X | |
| Minimum resistance of external braking resistor | 50Q | 50Q | 50Q | 50Q | 50Q | 50Q | 20Q | 20Q | 20Q | |

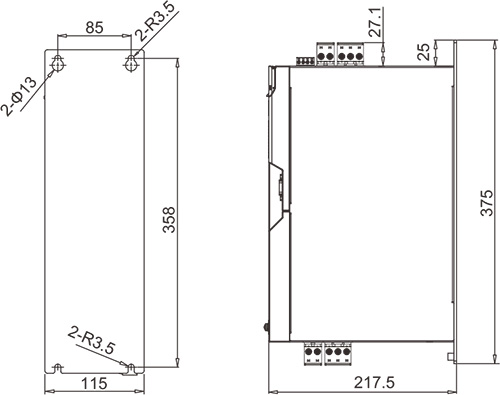

| Size information | 70*265*218 | I | 80*265*218 | I | 115*375*218 | |||||
| W*H*D (mm) | ||||||||||
| Size specification | B1 | I | B2 | I | B3 | |||||
| Recommended Circuit | Three-phase input current x (matched motor power/matched drive power) (Note 2) | |||||||||
| Breaker Current | ||||||||||
