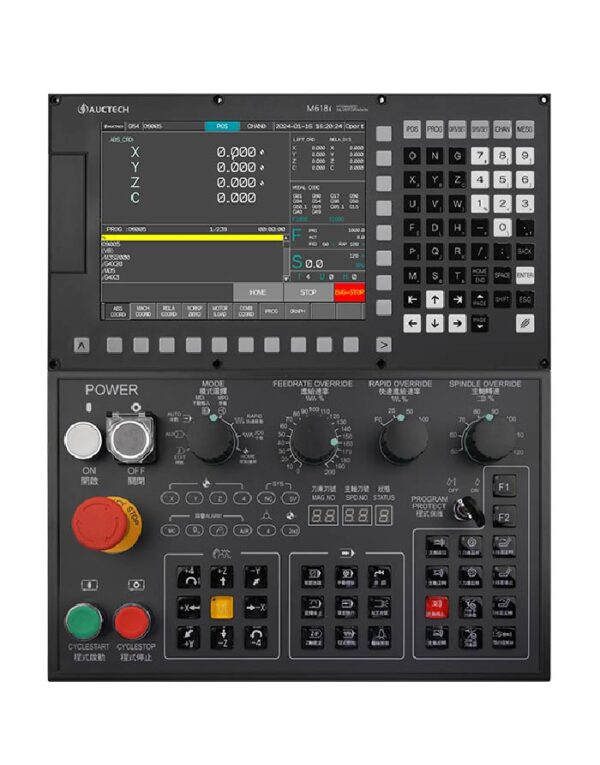

Auctech M618i/M6180i CNC Controllers are based on ARM architecture and is professionally equipped with mainstream standard 3-axis engraving and milling CNC machine tools.
Its high-speed and high-precision function (GSG) and nano-interpolation function (NIA) are particularly excellent in high-gloss processing with small tools.
M618i/M6180i supports both MIII and EtherCAT protocols. In addition to the bus spindle, it is also equipped with pulse and DA spindle control, making the configuration more flexible.In addition, the system has a built-in tapping debugging interface, which allows users to maximize the performance of the machine tool and achieve high-speed rigid tapping.
1,Based on low power consumption and high performance ARM A9 framework.
2,Nanometer-scale Interpolation Algorithm (NIA).
3,High-speed and high-precision slope conversion GSG.
4,Dual-drive synchronous gantry application.
5,Servo hardware current loop and secondary recovery full-closed loop function.
6,Open CNC interface,MIIl/EtherCAT/pulse/simulation,adapt to various domestic and foreign servo systems.
7,Bus l/O,in series with servo module,RJ45 interface “one network to the end”,servo,l/O,external auxiliary unit,unified bus configuration,simplified design and wiring.
8,PLC online editing,more convenient for function improvement and prompts.
9,Dual USB expandable storage.
10,Built-in servo adjustment/circular adjustment/high-speed tapping and other online optimization and adjustment functions.
11,Open macro program function.
| M618i | ||
| Screen size* | 10.4 | |
| MIll bus | √ | |
| EtherCAT | √ | |
| Bus/Pulse/Analog Principal Axis | √ | |
| Basic controlled axes | 4/3 | |
| Max controlled axes | 50 | |
| Max interpolated axes | 3 | |
| Max principal axes | 2 | |
| Channels | 2 | |
| Basic l/O points | 32+24 | |
| Max I/O points | 128+96 | |
| Multi-PLC program selection | ||
| Dual-drive synchronous contro | √ | |
| Hardware current loop servo control | √ | |
| RTCP control | ||
| GSG | √ | |
| NIA | √ | |
| Full closed-loop control | √ | |
| Proaramming error function | √ | |
| INTERNET VES access** | ||
| Remote debugging** | ||
| Standard panel** | GS3022W001 | |
| GH4012W001 | ||
| GH4025L001 | ||
| Graph | √Standard configuration | |
| Non-standard configuration | ||
