Dual-arm series cobot is featured with high flexibility, extreme safety, rapid deployment. It provides an overall solution for assembling by fast, safe, agile, accurate, and highly efficient positioning and operation, which also provides a better develop environment with more freedom and possibility for users.
1. More Intelligent
● More Flexible: With 7 degrees of freedom, the robot can work well in compact space.
2. Easter-to-use
● With Traction Teach
● Programming, Less limitation to robot user.
3. More Accurate
● More Accurate: Repeatability up to ±0.02mm.
4. Safety
Collision detection function enables human robot collaboration.
5. Attractive and Compact Design
●The robot is integrated designed with built-in control box.

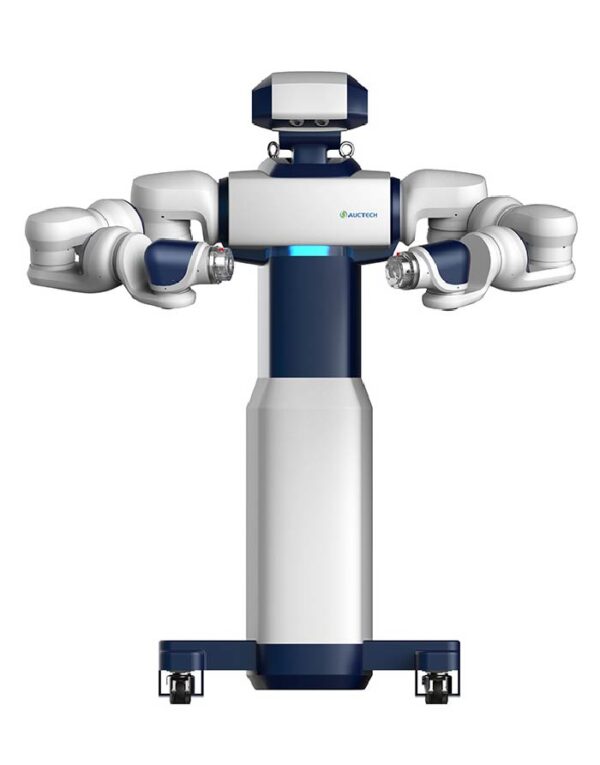

| X5-800 7A Dual | |||
| Max Payload | 10kg(5kg x 2) | ||
| Degress of Freedom | Each arm 7×2, Head 2, Head is optional | ||
| Max TCP Speed | 2.0m/s | ||
| Max Straight-line Speed | 1.0m/s | ||
| Reach | 800mm x 2 | ||
| Repeatability | ±0.02mm | ||
| Joint | Range | Max Speed | |
| J7 | ±180° | 180°/s | |
| ±110° | 180°/s | |
| ±180° | 180°/s | |
| J4 | ±115° | 180°/s | |
| J3 | ±180° | 180°/s | |
| J2 | ±105° | 180°/s | |
| J1 | ±180° | 180°/s | |
| Tool Interface | GB/T 14468.1-50-4-M6(eqv ISO 9409-1) | ||
| Tool I/O of Each Arm | 2 Dig I/O, 24V, 1A | ||
| Power Supply | 230VAC(-15%~+10%), 50-60Hz | ||
| Power Consumption | Typical Power Consumption 800W | ||
| Robot Dimesions | 1285x220x240mm | ||
| Control System | Built-in Control System | ||
| Installation | Installed in any Direction | ||
| AmbientTemperature Range | -10℃-45℃ | ||
| StorageTemperature Range | -40℃-55℃ | ||
| IP Class | IP30 | ||
| Robot Package Size | 1100x1000x1900mm | ||
| Net/Gross Weight | 200kg/250kg | ||
